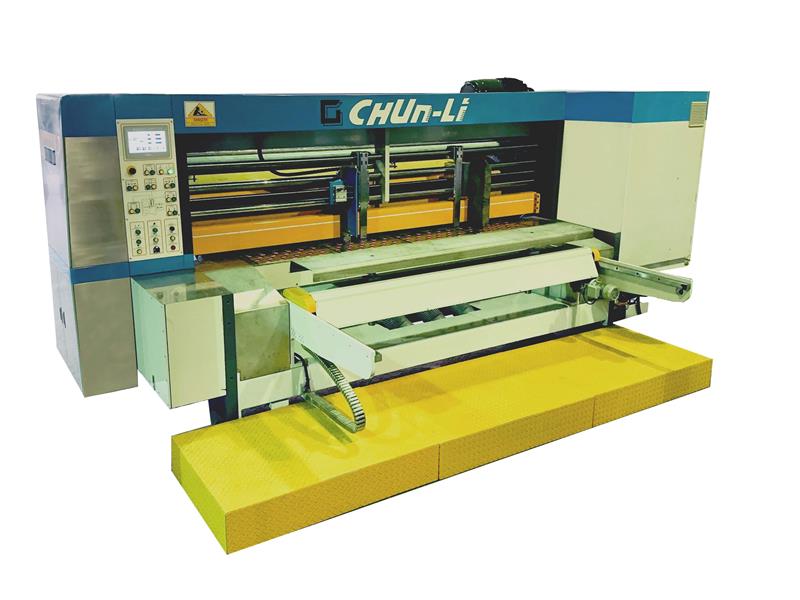

DC-2 Rotary Die Cutter
Description
●Auto feeder with suction device, for smooth feeding of bend sheet, less damage during operation.
●Cutting drum 360° adjustable, Lateral adjustment of anvil drum is by Hydraulic.
●Suitable for U.S. or European standard size of rotary die mold and anvils.
Specifications
| 型號 MODEL NO |
DC-1 |
DC-2 |
DC-3 |
| 標準木模尺寸 Standard die mold size |
360 mm |
440 mm |
536 mm |
| 最大用紙尺寸 Max. sheet size |
1200×2400 mm |
1500×2400 mm |
1800×2400 mm |
| 最小用紙尺寸 Min. sheet size |
280×500 mm |
300×500 mm |
330×500 mm |
| 機械產能 Capacity |
120 Sheet/Min |
110 Sheet/Min |
100 Sheet/Min |
| 所需馬力 Power required |
15 HP |
17 1/2 HP |
17 1/2 HP |
| 機械重量 Machine weight |
6000 kg |
6500 kg |
7000 kg |
Applications
